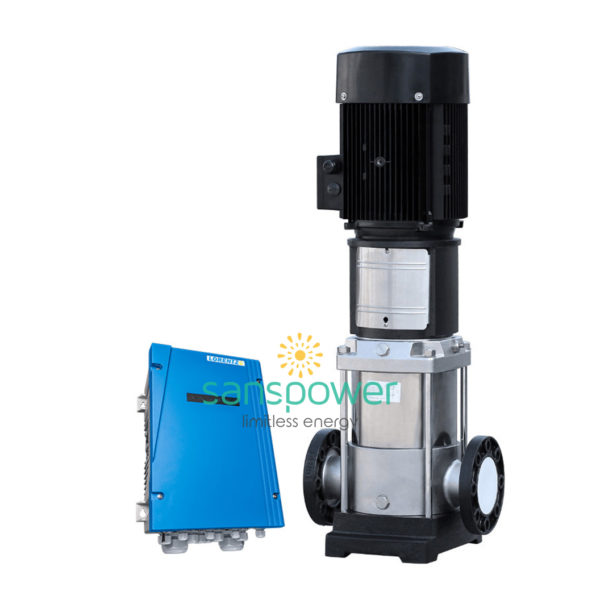

Pompa Surface LORENTZ PSk3-15 CS-F42-20

Fitur Utama Controller PSk3-15:

• High efficiency solar pump controller
• Hybrid power (solar/ grid/ generator) support with LORENTZ SmartSolution
• Inputs for water meter, pressure sensors, digital switches
• Onboard data logging and system monitoring
• Control inputs for dry running protection, remote control etc.
• Protected against reverse polarity, overload and overtemperature
• Integrated MPPT (Maximum Power Point Tracking)
• Integrated Sun Sensor
• Full setting using Android Apps: Lorentz PumpScanner
• Additional web based control: Lorentz PumpManager

Data Teknis Controller PSk3-15:

• Power max. 16 kW
• Input voltage max. 850 V
• Optimum Vmp** > 575 V
• Motor current max. 25 A
• Efficiency max. 98 %
• Ambient temp. -25…60 °C
• Enclosure class IP66

Fitur Utama Motor AC DRIVE CS-F 7,5 kW:

• Highly efficient 3 phase AC motor
• Frequency: 25 … 51 Hz
• No electronics in the motor

Data Teknis Motor AC DRIVE CS-F 7,5 kW:

• Rated power 7,5 kW
• Efficiency max. 80 %
• Motor speed 1.400…2.905 rpm
• Power factor 0,87
• Insulation class F
• Enclosure class IPX4

Fitur Utama Pump End PE CS-F42-20:

• Premium materials
• Optional: dry running protection
• Centrifugal pump
• Efficiency max. 79 %

Pump Unit PUk3-15 CS-F42-20 (Motor, Pump End):

• Water temperature max. 70 °C
• Suction head acc. to COMPASS sizing

Grafik Kemampuan Operasional Pompa Surface PSk3-15 CS-F42-20

Data Dimensi Dan Berat Pompa Surface PSk3-15 CS-F42-20

Data Dimensi Controller PSk3-15

H = 428 mm
H1 = 390 mm
H2 = 270 mm
W1 = 280 mm
W2 = 250 mm
D = 6,0 mm

Data Dimensi Pump Unit CS-F42-20

A = 260 mm
B = 208 mm
C = 430 mm
D = 365 mm
E = 245 mm
F = 190 mm
G = 140 mm
H = 641 mm
I = G1/2″
J = 330 mm
K = 266 mm
L = 80 mm
M = 160 mm
N = 18 mm
O = 45 mm
P = 14 mm

Berat Bersih LORENTZ PSk3-15 CS-F42-20

1. Controller PSk3-15 – 11,8 kg
2. Pump Unit CS-F42-20 – 110 kg
3. Motor AC DRIVE CS-F – 62 kg
4. Pump End CS-F42-20 – 48 kg
